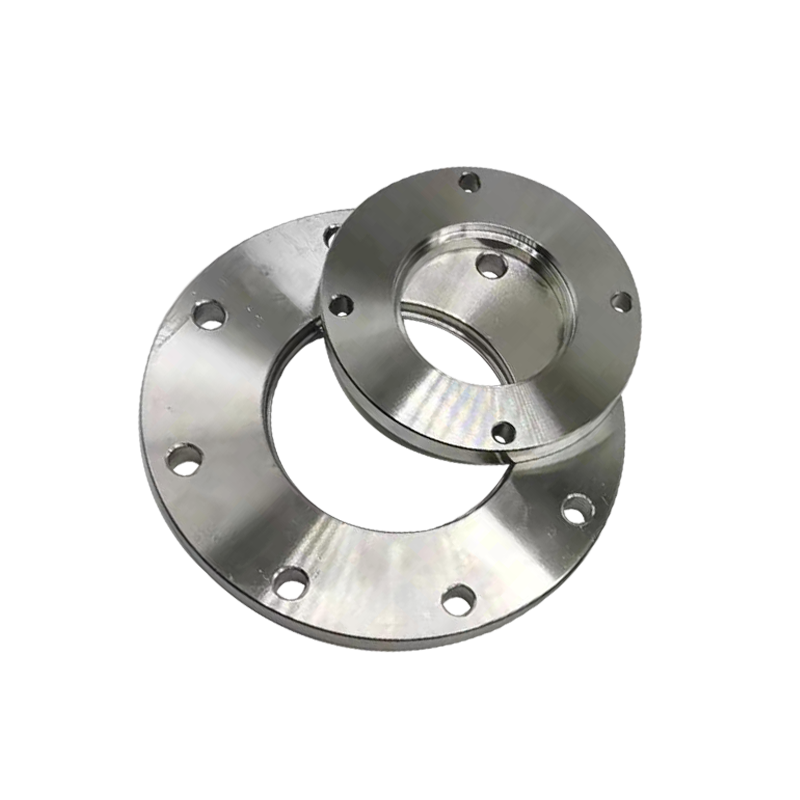

Vacuum Stainless Steel 304 316 ISO Large Flange Rotatable with holes weld flange

  • 1
  • 2
  • 3

Brand Name : TOBO

Model Number : flange

Certification : SGS/TUV

Place of Origin : China

MOQ : 10

Payment Terms : T/T, Western Union

Supply Ability : 10000 PC/Month

Delivery Time : 5-8 working days

Packaging Details : ply-wooden case

Material : 304 316

Connection : forged

Application : Connect Pipes, gas, Oil, Water, Industry

Shape : round

Type : Loose flange

Surface treatment : Hot Galvanized, oil, Polish180.320.420, Sand Blasting, sand blast

Color : or as required, oil, Can be customed, black or not, Black

Contact Now

Vacuum Stainless Steel 304 316 ISO Large Flange Rotatable with holes weld flange

Product Description
LF Lap Joint Flange-SS304 STAINLESS STEEL

Rotatable Bolt Ring Adapter, ISO-LF Large Flange SizeIf you order one piece of any size, then the package includes one flange and
a retaining ring, please contact me if you need ISO-320 to ISO630.

These rotatable bolt ring adapters are for making non bolted ISO-K collar flanges into ISO-F smooth bolt hole flanges. Standard
ISO LF NW Centering Rings can be used. (see far right graphic above). They follow International Standards Organization (ISO)
standards . ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial
applications. The fittings are quick to assemble using double claw clamps or bolts and a centering ring. The ISO standard sizes

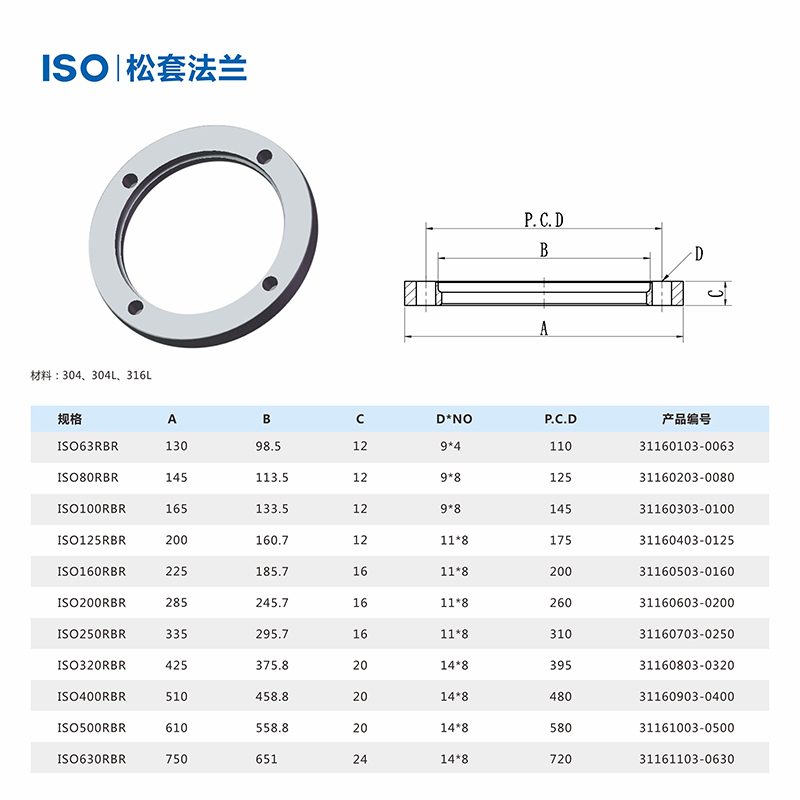

for large flanges are ISO-63, ISO-80, ISO-100, ISO-160, ISO-200, ISO-250, ISO-320, ISO-400, ISO-500, ISO-630. These vacuum flanges
are made of STAINLESS STEEL.
Vacuum Stainless Steel 304 316 ISO Large Flange Rotatable with holes weld flange
Vacuum Stainless Steel 304 316 ISO Large Flange Rotatable with holes weld flange
Specification
item
value
Place of Origin
China
Brand Name
TOBO
Model Number
ISO flange
Standard
ISO
Material
Stainless Steel 304/316/304L/316L
Type
Round Flange
Product name
Rotatable Bored Flange
Application
GAS/water/oil
Size
Customized Size
Color
Silver
Connection
Weldimg
Technics
Froged+cnc Machine
Usage
Oil Gas Water Industrial

Essential details
Place of Origin:
China
Brand Name:
TOBO
Model Number:
ISO welding flange
Standard:
ANSI, ISO, ISO
Material:
Stainless Steel304L/316L
Type:
Round Flange
Product name:
Rotatable welding Flange
Surface treatment:
matt polished
Size:
Customized Size
Color:
Silver
Connection:
Weldimg
Technics:
Froged+cnc Machine
Usage:
Oil Gas Water Industrial
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
1.)Into OPP/bubble bag
2.)Into Carton
3.)Into Wooden Case
4.)As per the request of customers
Port
NINGBO port SHANGHAI port
Lead time:
Quantity(pieces) 1 - 1 2 - 200 >200
Lead time (days) 5 15 To be negotiated

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.

7.Do you accept custom design on size?
A: Yes, if the size is reasonable

8.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
